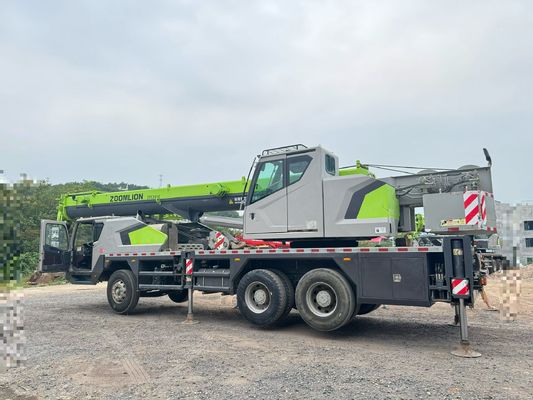

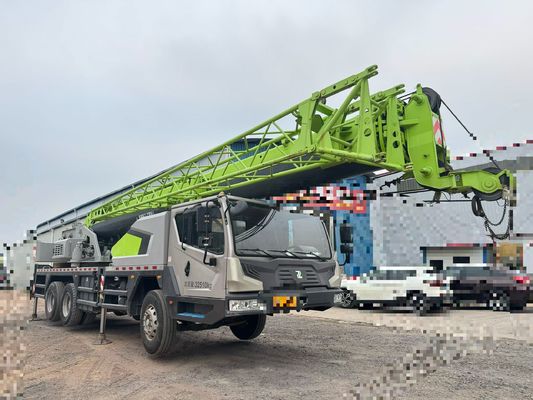

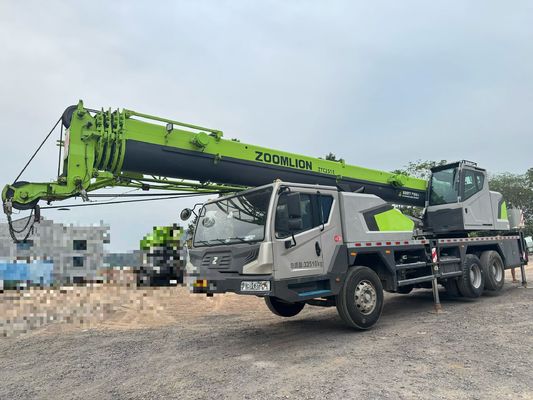

2020 Zoomlion ZTC251E562 Truck Crane with 25 Ton Lifting Capacity High Operational Efficiency and Powerful Lifting

Overall Performance

• Powerful Lifting Capacity: With a rated total lifting capacity of 25,000 kg, it can meet a wide range of lifting requirements. The maximum lifting moment of the basic boom is 1,142 kN·m, and that of the longest main boom also reaches a relatively high level, ensuring stable lifting capacity under different working conditions.
• High Operational Efficiency: The main winch has a maximum lifting speed of 140 m/min, which enables quick completion of lifting tasks. The slewing speed can reach up to 2.7 r/min, further improving the operational efficiency4.
  Product Parameters

  Parameter	Value
  Model	ZTC251E562
  Maximum Rated Total Lifting Capacity	25000 kg
  Maximum Lifting Moment of Basic Boom	980 kN·m
  Maximum Lifting Moment of Longest Main Boom	573 kN·m
  Maximum Lifting Height of Basic Boom	11.5 m
  Maximum Lifting Height of Main Boom	33.8 m
  Maximum Lifting Height of Auxiliary Boom	41.6 m
  Maximum Single Rope Speed (Main Winch)	120 m/min (4 layers)
  Maximum Single Rope Speed (Auxiliary Winch)	100 m/min (2 layers)
  Boom Lifting Time	40 s
  Boom Extension Time	60 s
  Slewing Speed	0 - 2.2 r/min
  Maximum Driving Speed	78 km/h
  Maximum Gradient Climbing Ability	37%
  Minimum Turning Diameter	≤22 m
  Minimum Ground Clearance	220 mm
  Fuel Consumption per 100 km	45 L
  Overall Dimensions (Length × Width × Height)	12800×2500×3430 mm
  Longitudinal Distance of Outriggers	5.36 m
  Transverse Distance of Outriggers	6.1 m
  Self-weight in Driving State	30000 kg
  Kerb Weight of the Whole Vehicle	29870 kg
  Front Axle Load	6800 kg
  Rear Axle Load	23200 kg
  Engine Model	WP10.270
  Rated Power	199 kW/2200 r/min
  Maximum Output Torque	1100 N·m/1300 - 1600 r/min

  Company Profile






  FAQ

  1:What are your main export construction machineries?
  A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .

  2:Is your company a factory or a trader?
  A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.

  3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
  A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.

  4:How do I know the condition of the original used or re-manufacturing  concrete pump truck?
  A: We will provide a video of the specifications and the test of the pump truck before we ship to you.

  5:What is the minimum order quantity for your used machinery?
  A: The MOQ is 1 unit.
