2013 Zoomlion 52M Concrete Pump Truck on Mercedes-Benz Chassis 52 Meters

2013 Zoomlion 52M Concrete Pump Truck on Mercedes-Benz Chassis 52 Meters

Brand Name: Zoomlion
Model Number: ZLJ5331THB
MOQ: 1
Price: USD 30000 - USD 100000 per unit
Payment Terms: T/T,Western Union,MoneyGram,D/A,L/C,D/P
Supply Ability: 1000
Detail Information
Place of Origin:
China
Type:
Concrete Pump Truck
Condition:
Used
Boom Length:
52 Meters
Brand:
Zoomlion
Gross Weight:
35000kg
Packaging Details:
N/M
Supply Ability:
1000
Product Description

Professional Listing: Used Zoomlion ZLJ5331THB 52X-6RZ Concrete Pump Truck

Overview:
We are offering a well-maintained 2013 Zoomlion 52-meter boom concrete pump truck mounted on a robust Mercedes-Benz chassis. This unit has recently undergone comprehensive basic refurbishment and is presented in excellent mechanical and operational condition, ready for reliable service on your next project. It represents a cost-effective solution for high-reach concrete placing needs in construction, infrastructure, and industrial applications.

Key Specifications & Features:

  • Manufacturer & Model: Zoomlion ZLJ5331THB 52X-6RZ

  • Year of Manufacture: 2013

  • Condition: Used | Excellent Mechanical Condition | Post-Refurbishment

Chassis Details:

  • Chassis Brand: Mercedes-Benz

  • Chassis Model: Actros 3341 (Typical for this model year)

  • Engine: Mercedes-Benz OM 501 LA V6 Turbocharged Diesel Engine

  • Displacement: 11,946 cc

  • Horsepower: Approximately 408 HP (300 kW)

  • Emission Standard: Euro III / Euro IV (Region dependent)

  • Transmission: 9-speed Automatic Transmission (Mercedes Powershift)

  • Cab: High-roof sleeper cab with air conditioning, designed for operator comfort.

Pumping System:

  • Boom System:

    • Boom Length: 52 meters (approx. 171 feet)

    • Boom Sections: 6-section, RZ-type folding boom

    • Boom Material: High-strength steel

    • Control: Proportional radio remote control + manual backup controls.

  • Pumping Unit:

    • Theoretical Concrete Output: Up to 120 m³/h (varies with mix design and pipeline setup)

    • Maximum System Pressure: 8.7 MPa

    • Cylinder Diameter & Stroke: Φ200 × 1400 mm

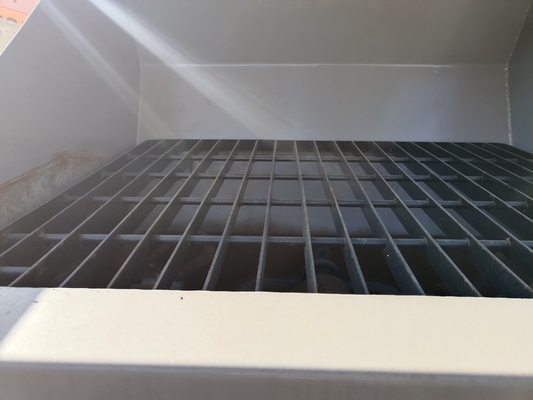

    • Hopper Capacity: 600 L

    • S-Valve Design: Provides smooth concrete flow and excellent sealing, capable of handling aggregates up to 40mm.

Performance Parameters:

  • Max Vertical Pumping Height: 49.7 m

  • Max Horizontal Pumping Distance: 45.2 m

  • Line Pipe Diameter: Φ125 mm (standard)

  • Outrigger Span: Front: ~6.5m / Rear: ~8.7m (provides exceptional stability)

Recent Refurbishment (Basic):
This unit has completed a foundational reconditioning process to ensure reliability. Work included:

  • Mechanical Service: Full engine oil and filter change, hydraulic system service, and transmission fluid check.

  • Pumping System Check: Inspection and replacement of worn wear parts (e.g., cutting rings, seals, and delivery cylinder cups).

  • Hydraulics: Inspection for leaks, replacement of critical hoses, and hydraulic oil/filter change.

  • Structural Inspection: Visual and non-destructive testing (NDT) check on the boom structure and outriggers for integrity.

  • Electrical & Control Systems: Diagnostic check of the control system, calibration of pressure sensors, and testing of the radio remote control.

Summary:
This 2013 Zoomlion 52m pump truck is a powerful and proven workhorse. The combination of the dependable Mercedes-Benz chassis and Zoomlion's efficient pumping technology makes it a highly desirable asset. The recent basic refurbishment ensures it is in solid working order, offering tremendous value for contractors seeking a capable high-reach pump without the cost of a new machine.

.


Pump Brand Zoomlion
Boom Length 52 Meters
Chassis Mercedes Benz
Manufactured Year 2013
Condition Used
Model ZLJ5331THB

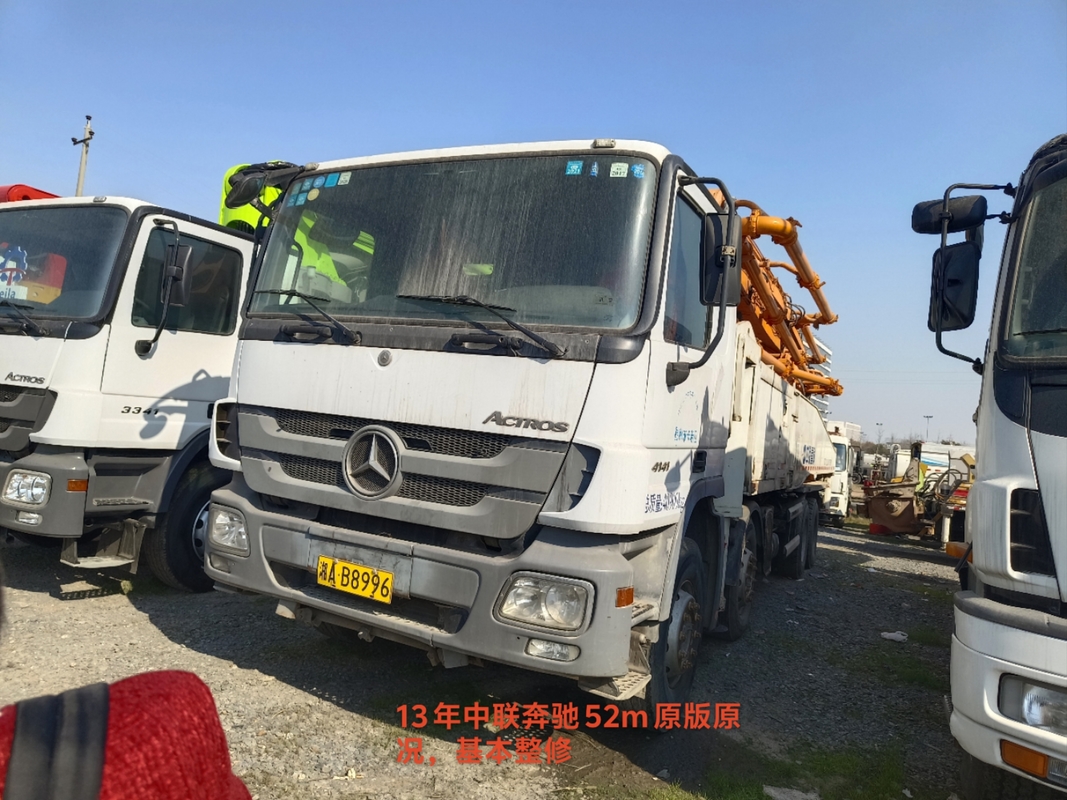

2013 Zoomlion 52M Concrete Pump Truck on Mercedes-Benz Chassis 52 Meters 0

2013 Zoomlion 52M Concrete Pump Truck on Mercedes-Benz Chassis 52 Meters 1

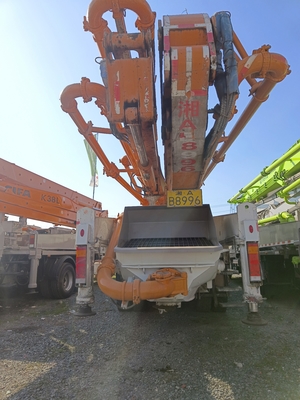

2013 Zoomlion 52M Concrete Pump Truck on Mercedes-Benz Chassis 52 Meters 2

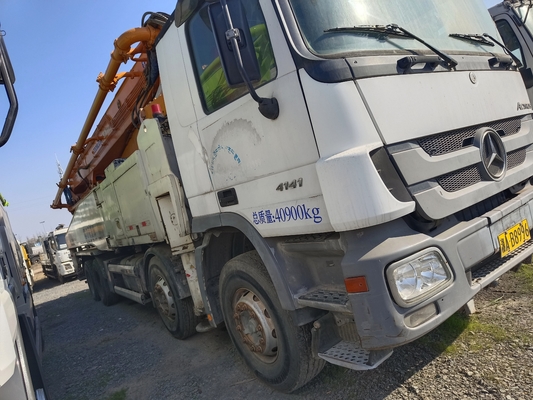

2013 Zoomlion 52M Concrete Pump Truck on Mercedes-Benz Chassis 52 Meters 3

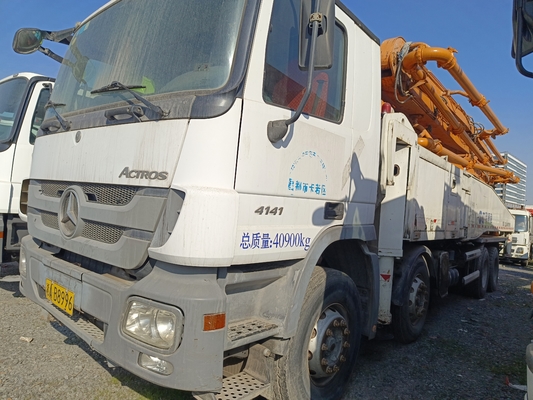

2013 Zoomlion 52M Concrete Pump Truck on Mercedes-Benz Chassis 52 Meters 4

2013 Zoomlion 52M Concrete Pump Truck on Mercedes-Benz Chassis 52 Meters 5
