Excellent Performance 2023 Zoomlion Truck Crane Ztc1000V663-1 for Stable Operation

Name: Excellent Performance 2023 Zoomlion Truck Crane Ztc1000V663-1 for Stable Operation
Brand: Hunan Teila Heavy Industry Machinery Group Co., Ltd
SKU: ZTC1000V663-1
Price: 140,000.00 USD
Availability: InStock

Brand Name:	Zoomlion
Model Number:	ZTC1000V663-1
MOQ:	1
Price:	$120000-160000
Payment Terms:	T/T
Supply Ability:	500pieces/Year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ISO9001

Packaging Details:

Bulk Cargo Shipping

Supply Ability:

500pieces/Year

Highlight:

2023 used truck crane

2023 used truck mobile crane

ztc1000v663-1 used truck crane

Product Description

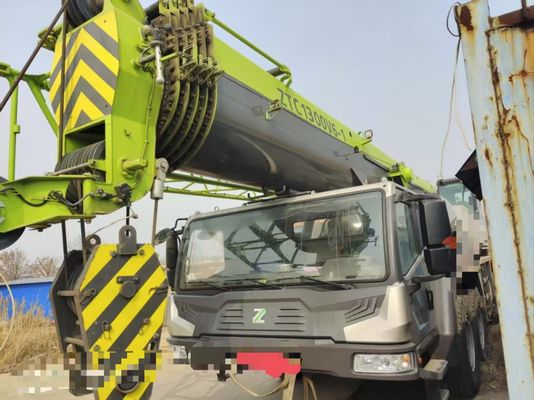

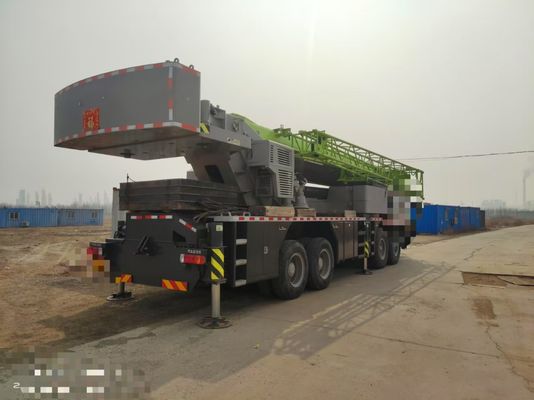

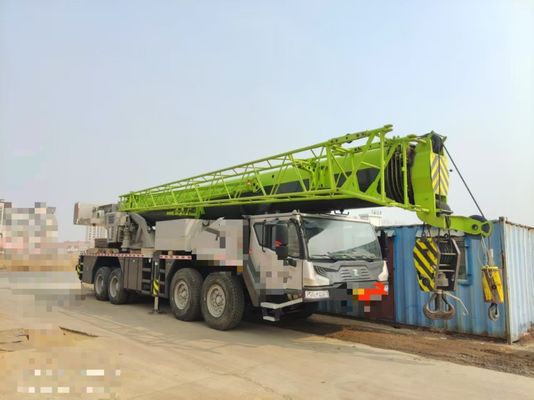

Excellent Performance Zoomlion Truck Crane ZTC1000V663-1 for Stable Operation

Main Specifications

Boom System: It is equipped with a 6-section 60.5m super-large cross-section elliptical main boom. The main boom length is 13.5-60.5m. The maximum lifting height of the basic boom is 14.3m, and that of the main boom is about 62m. With the jib, it can reach about 82.5m.
Outrigger Span: The longitudinal span of the outriggers is not publicly available at present. The transverse span is 8.4m when fully extended.
Traveling Performance: The maximum travel speed is 85 km/h, the maximum climbing gradient is 43%, and the minimum turning diameter is 20.5m.

Performance Parameters

Power System: It is equipped with a powerful engine that provides sufficient power for the crane's operation. The specific engine model may vary according to different configurations.
Load Capacity: The basic boom has a maximum lifting moment of 3557 kN·m, and the full-extended boom can lift a maximum load of 13.2t.
Stability: The 8.4m double-stage large-section outriggers enhance stability.
Intelligent Configuration: It is equipped with an advanced intelligent control system that can monitor and control the crane's working status in real time, such as load monitoring, boom angle monitoring, etc., to ensure safe and efficient operation.

Applications

Construction Projects: It is widely used in high-rise building construction for the installation of steel structures, prefabricated components and the hoisting of building materials.
Bridge Construction: In bridge construction projects, it is responsible for the hoisting of bridge girders, piers and other components.
Industrial Installation: It is suitable for the installation and maintenance of large industrial equipment in factories and mines, such as the hoisting and positioning of large mechanical equipment and chemical tanks.

Parameter	Value
Max. Rated Lifting Capacity	100,000 kg
Max. Lifting Moment of Basic Boom	3557 kN·m
Max. Lifting Load of Fully Extended Boom	13.2 t
Max. Lifting Height of Main Boom	61.3 m
Max. Lifting Height of Main Boom + Jib	88.4 m
Main Boom Length	60.5 m
Jib Length	23.5 m
Chassis Type	Four-axle chassis
Engine	430 hp high-torque engine
Transmission	12-speed synchronized gearbox
Max. Traveling Speed	89 km/h
Max. Gradeability	49%
Min. Turning Radius	12 m
Outrigger Span	8.4 m
Total Weight in Transit	Including 23.5 tons of counterweight

Excellent Performance 2023 Zoomlion Truck Crane Ztc1000V663-1 for Stable Operation 0

Excellent Performance 2023 Zoomlion Truck Crane Ztc1000V663-1 for Stable Operation 1

Excellent Performance 2023 Zoomlion Truck Crane Ztc1000V663-1 for Stable Operation 2

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .

2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.

3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.

4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.

5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
