2022 Zoomlion Used Concrete Mixer Truck 12m3 Old Construction Machinery

2022 Zoomlion New 10m³ concrete mixer truck construction machinery

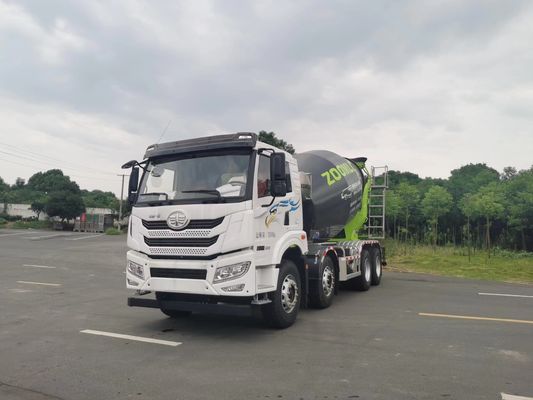

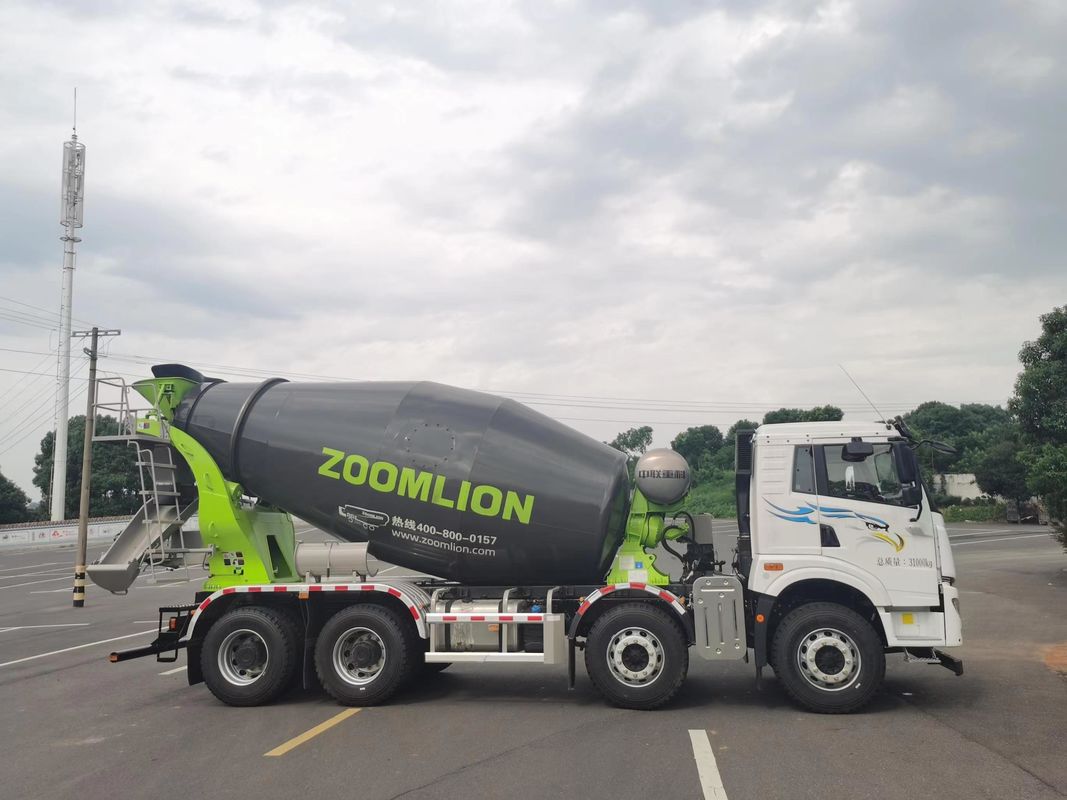

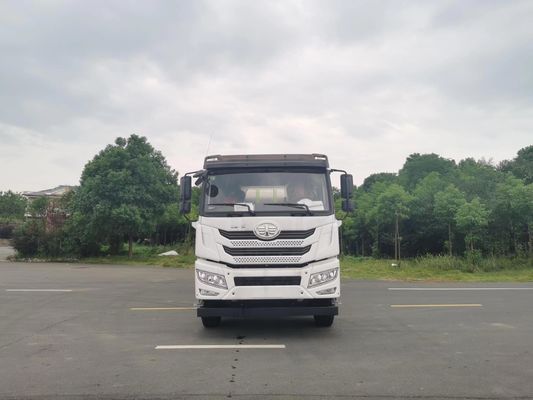

2022 Zoomlion ZLJ5318GJBH 10m³ Concrete Mixer Truck: A Comprehensive Overview

The 2022 Zoomlion ZLJ5318GJBH 10m³ concrete mixer truck, equipped with a解放 (FAW) chassis and a 4-axle design, represents a cutting-edge solution for efficient concrete transportation and mixing. This vehicle combines robust performance, advanced engineering, and environmental sustainability, making it ideal for construction projects of all scales. Below is a detailed introduction to its key features and technical specifications.

1. Key Features
Capacity & Design:
The mixer features a 10m³ capacity drum with a low-inclination design (12°), optimizing concrete homogeneity and reducing residual material during discharge. The drum’s T-type agitator blades ensure thorough mixing, minimizing segregation and enhancing quality.
Powertrain:
Powered by a (FAW) chassis, the truck is equipped with a high-efficiency diesel engine (e.g., CA6DM2-46E5) delivering 340 hp and 1,650 Nm of torque. This ensures strong performance on diverse terrains, including urban and rural roads.
Efficiency & Speed:
The mixer achieves rapid loading (≥4m³/min) and unloading (≥3m³/min) speeds, outperforming industry standards. The low residual rate (≤0.7%) maximizes concrete utilization, reducing waste.
2. Technical Specifications
Dimensions:
Overall length: 9,260 mm | Width: 2,500 mm | Height: 3,960 mm
Axle Configuration:
4-axle design (8×4) for superior stability and load distribution.
Fuel Efficiency:
Compliant with National IV emission standards, the engine prioritizes fuel economy and environmental protection.
Hydraulic System:
Equipped with(imported) hydraulic components (e.g., Bosch Rexroth pumps and motors), ensuring smooth drum rotation and long-term reliability.
3. Application Scenarios

This mixer is versatile for:

Urban Construction: Suitable for high-rise buildings, bridges, and infrastructure projects.
Rural/Remote Areas: The 4-axle design ensures excellent off-road capability.
Environmental Projects: LNG or diesel options reduce carbon emissions, aligning with green construction trends.
