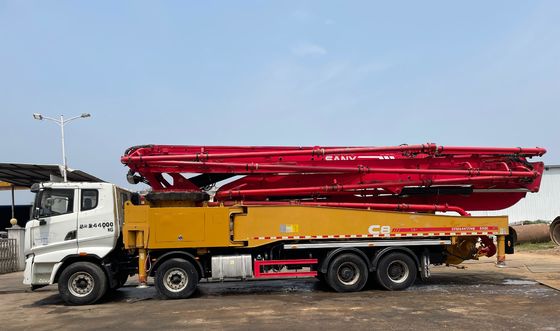

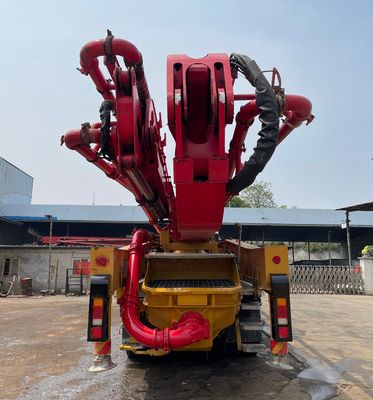

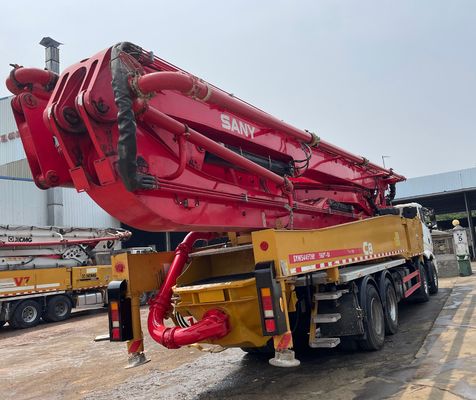

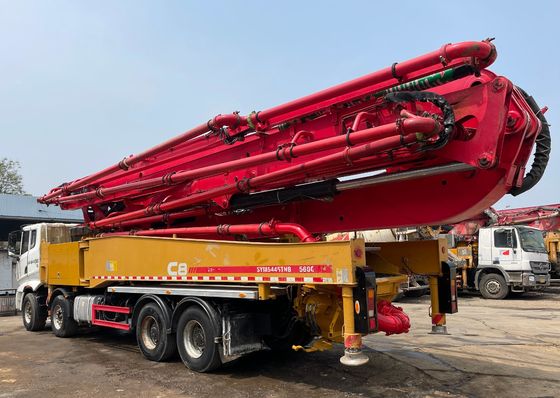

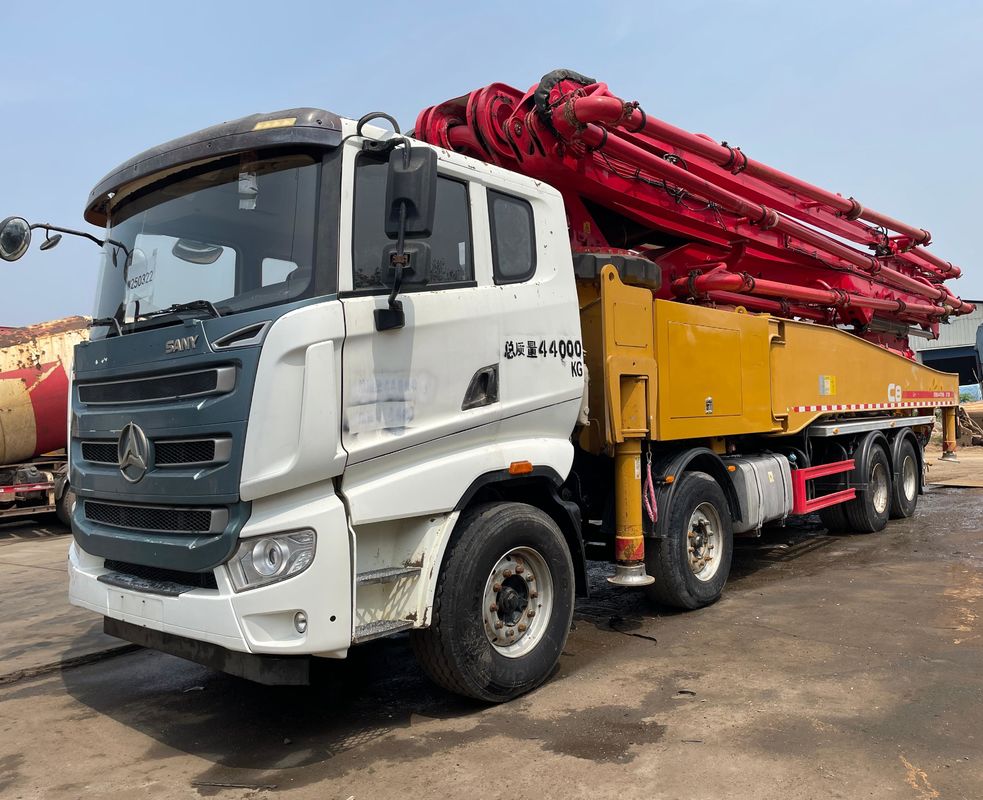

Sany 56m Pump Truck 2020 Used Concrete Boom Pumping Tool Pumps

Name: Sany 56m Pump Truck 2020 Used Concrete Boom Pumping Tool Pumps
Brand: Hunan Teila Heavy Industry Machinery Group Co., Ltd
SKU: SYM5445THB 560C-8A
Availability: InStock

Brand Name:	Sany
Model Number:	SYM5445THB 560C-8A
MOQ:	1
Price:	US$50,000.00-130,000.00
Payment Terms:	T/T
Supply Ability:	500 Units

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001: 2000

Packaging Details:

Bulk Cargo Shipping

Supply Ability:

500 Units

Highlight:

sany 56m old concrete pump truck

sany 56m used concrete pump truck

Product Description

Highly Reliable

· · Professional Supplier for Used Concrete Machine for Over 10 Years
· · Machines made by International authoritative-certificate lighthouse factory & world-class manufacturing capability
· · Optimized key parts with ultra-high strength steel
· · Open hydraulic system & high configuration
· · SY customized chassis & SY DEUTZ Engine
· · Stable signal & precise control

SYM5445THB 560C-8A

Vehicle parameters
full length	14160mm
total width	2550mm
Total height	4000mm
Total weight	44000kg
Boom leg parameters
Boom vertical height	56m
Boom horizontal length	51m
Boom vertical depth	36.6m
Minimum unfolded height	15.2m
The length of the first section arm	11390mm
First section boom angle	89
Second section arm length	9230mm
Second section arm rotation angle	180
The length of the third section arm	8750mm
Third section arm rotation angle	180
Fourth section arm length	11070mm
Fourth section arm angle	240
Fifth section arm length	8080mm
Fifth section arm rotation angle	210
Sixth section arm length	3350mm
Sixth section arm rotation angle	110
Turntable rotation angle	±360
Expansion width of front outriggers	9470mm
Rear outrigger expansion width	12680mm
Pumping system parameters
Concrete theoretical displacement low pressure	180m³/h
Concrete theoretical displacement high pressure	125m³/h
Theoretical pumping pressure low pressure	8.3Mpa
Theoretical pumping pressure high pressure	12Mpa
Theoretical pumping times low pressure	29/
Theoretical pumping times high pressure	19/
Conveying cylinder inner diameter	260mm
Conveying cylinder stroke	2100mm
Hydraulic system
System oil pressure	32Mpa
Fuel tank capacity	680L
Water tank volume	620L
Conveying pipe diameter	125mm
End hose length	3m
End hose diameter	125mm
Chassis parameters
Chassis brand
Chassis model	SYM5440THB1E
Engine model	D12C5-490E0
Engine maximum net power	348KW/1900rpmkW/rpm
Emission Standards	EURO V
Fuel tank volume	600L
Emission	12.12L
Maximum speed	90km/h

Sany 56m Pump Truck 2020 Used Concrete Boom Pumping Tool Pumps 0
1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .

2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.

3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.

4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.

5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
