USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis

USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis

Brand Name:	SANY
MOQ:	1
Price:	USD40000 - USD80000 EXW
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model:

SANY SY5320THB

Emission Standard:

National III

Fuel Tank Capacity:

380L

System Pressure:

32MPa

Max. Speed:

80km/h

Delivery Pipe Diameter:

125mm

Packaging Details:

Bulk Cargo Shipping

Highlight:

USED SANY 49m Concrete Pump Truck

2012 USED SANY Boom Pump

ISUZU Chassis 2012 Boom Pump

Product Description

Key Features & Configurations

Category	Specification	Details
Model	SANY SY5320THB	49m C8 Series Truck-Mounted Concrete Pump
	Emission Standard: National III	Fuel Tank Capacity: 380L
Pumping Unit	Max. Theoretical Output:	- Low Pressure: 170m³/h - High Pressure: 120m³/h
	Max. Theoretical Pressure:	- Low Pressure: 8.3MPa - High Pressure: 12MPa
	Max. Pumping Strokes:	- Low Pressure: 29 times/min - High Pressure: 19 times/min
	Delivery Cylinder:	- Bore: 260mm - Stroke: 1900mm
Boom System	Vertical Reach: 48.5m	Horizontal Reach: 43.5m
	Vertical Depth: 30.8m	Min. Unfolding Height: 13.9m
	Boom Sections: 5	Turntable Rotation: ±360°
	Front Outrigger Spread: 9300mm	Rear Outrigger Spread: 9620mm
Hydraulic System	Type: Open Circuit	System Pressure: 32MPa
	Fuel Tank Capacity: 680L	Water Tank Capacity: 620L
	Delivery Pipe Diameter: 125mm	End Hose Length: 3m (125mm Diameter)
Performance	Max. Speed: 80km/h	Braking Distance (30km/h): ≤10m
	Energy-Saving: Advanced System	Safety: Anti-Swing, Fault Self-Diagnosis
Dimensions	Overall Length: 11995mm	Overall Width: 2500mm
	Overall Height: 3990mm	Curb Weight: 32450kg

Well-maintained, fully functional, and ready for immediate deployment

Photo Details

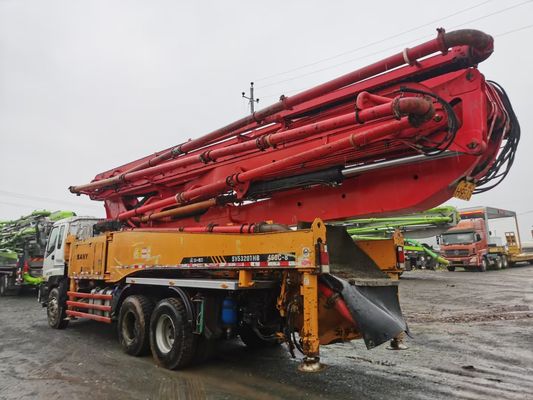

USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis 0

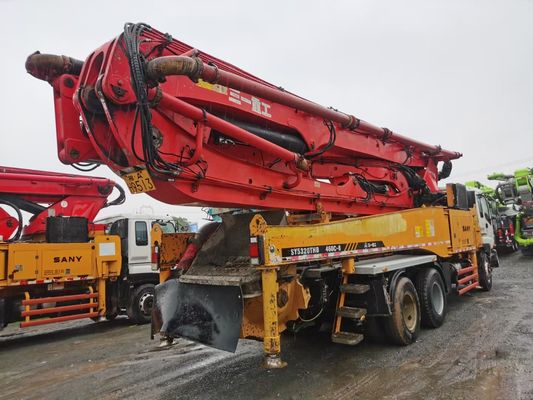

USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis 1

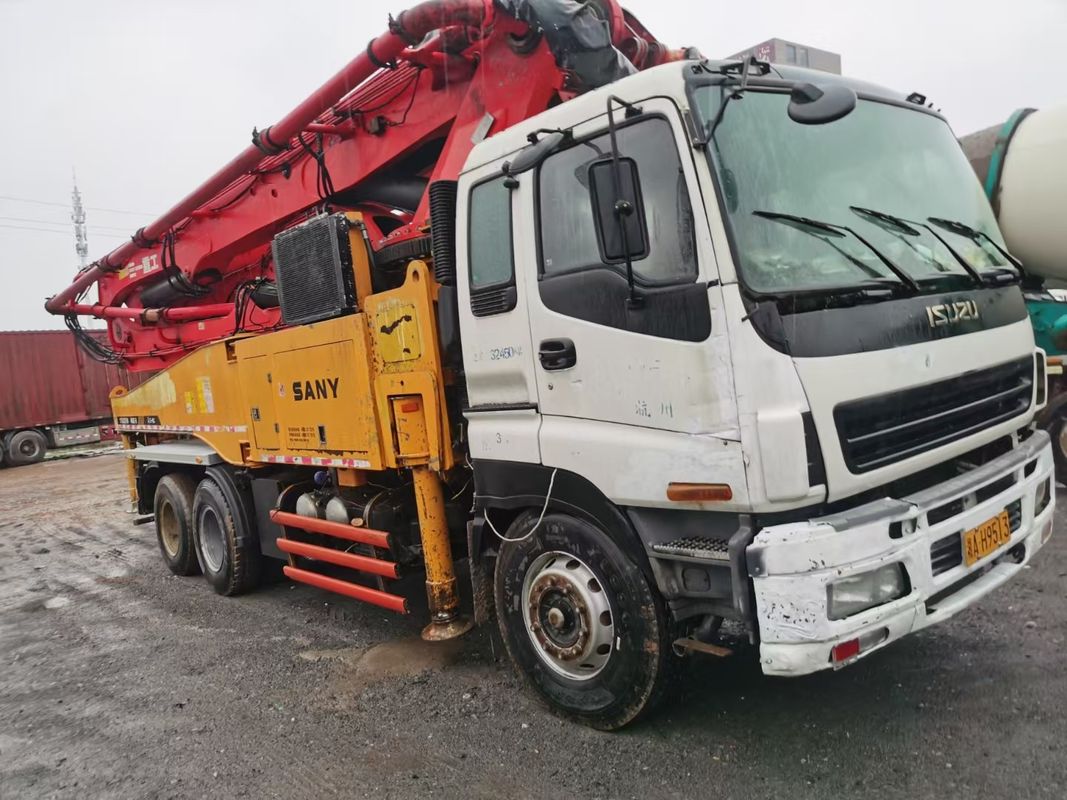

USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis 2

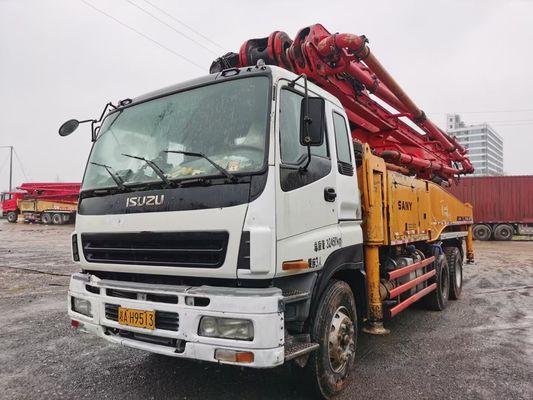

USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis 3

USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis 4

Company Profile

USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis 5

FAQ

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .

2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.

3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.

4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.

5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
