2016 ZOOMLION 80 Ton Mobile Crane Hydraulic Crane Lifting Equipment

2016 ZOOMLION 80 Ton Mobile Crane Hydraulic Crane Lifting Equipment

Brand Name:	ZOOMLION
MOQ:	1
Price:	USD60000 - USD140000 EXW
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Lifting Capacity:

80,000 Kg

Maximum Travel Speed:

75 Km/h

Overall Dimensions (L×W×H):

15,000×2,850×3,850 Mm

Fuel Consumption (per 100 Km):

46 L

Slew Speed:

0-1.6 R/min

Packaging Details:

Bulk Cargo Shipping

Highlight:

2016 zoomlion used truck crane

2016 zoomlion used truck mobile crane

80 ton used truck crane

Product Description

Key Features & Configurations

Category	Parameter	Details
Lifting Capacity	Maximum Rated Total Lifting Capacity	80,000 kg
	Maximum Lifting Moment (Basic Boom)	3,116 kN·m
	Maximum Lifting Moment (Longest Main Boom)	1,646 kN·m
Lifting Height	Maximum Lifting Height (Basic Boom)	13.7 m
	Maximum Lifting Height (Main Boom)	48.8 m
	Maximum Lifting Height (Jib - Option 1)	66.0 m
	Maximum Lifting Height (Jib - Option 2)	75.0 m
Working Speed	Main Winch Speed (Single Rope)	130 m/min
	Auxiliary Winch Speed (Single Rope)	110 m/min
	Boom Elevation Time	62 s
	Boom Extension Time	145 s
	Slew Speed	0-1.6 r/min
Travel	Maximum Travel Speed	75 km/h
	Maximum Gradeability	40%
	Minimum Turning Diameter	≤24 m
	Minimum Ground Clearance	280 mm
	Fuel Consumption (per 100 km)	46 L
Mass	Curb Weight (Travel State)	50,000 kg
	Vehicle Ready Mass	49,870 kg
	Front Axle Load	24,000 kg
	Rear Axle Load	26,000 kg
Dimensions	Overall Dimensions (L×W×H)	15,000×2,850×3,850 mm
	Outrigger Longitudinal Distance	6.38 m
	Outrigger Lateral Distance (Full Extension)	8.0 m
	Outrigger Lateral Distance (Half Extension)	5.28 m
	Tail Slew Radius	4,390 mm
Boom Specs	Main Boom Length	12.5—48.0 m
	Main Boom Elevation Angle	-2° to 80°
	Extension Boom Length (Optional)	9.0 m
	Extension Boom Installation Angle	0°
Jib Specs	Jib Length (Option 1)	10.3 m
	Jib Length (Option 2)	17.5 m
	Jib Installation Angle (Option 1)	0°, 15°, 30°
	Jib Installation Angle (Option 2)	0°, 15°, 30°

Well-maintained, fully functional, and ready for immediate deployment

Photo Details

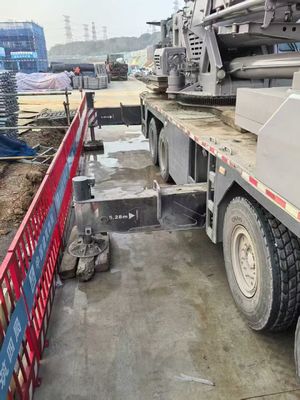

2016 ZOOMLION 80 Ton Mobile Crane Hydraulic Crane Lifting Equipment 0

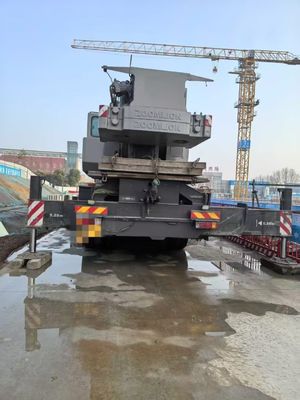

2016 ZOOMLION 80 Ton Mobile Crane Hydraulic Crane Lifting Equipment 1

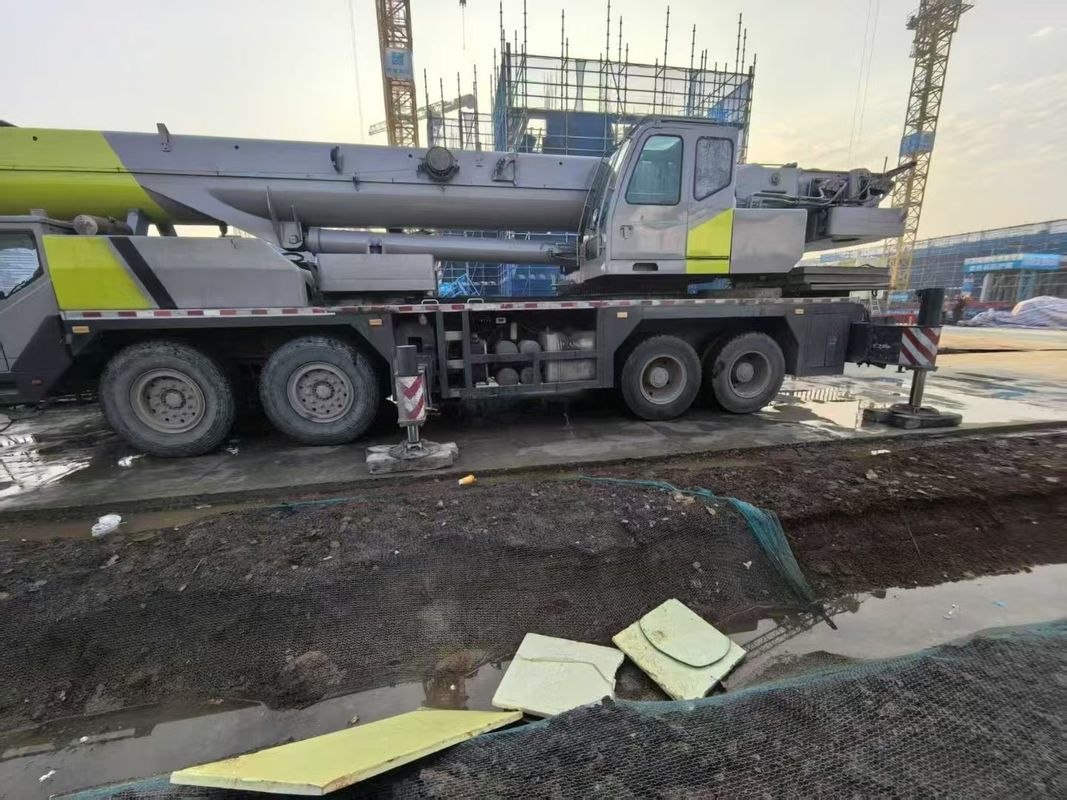

2016 ZOOMLION 80 Ton Mobile Crane Hydraulic Crane Lifting Equipment 2

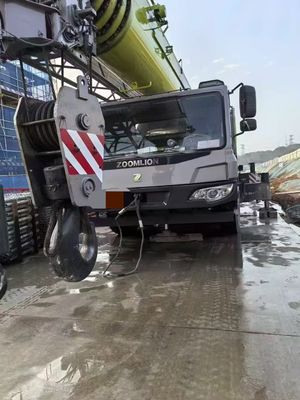

2016 ZOOMLION 80 Ton Mobile Crane Hydraulic Crane Lifting Equipment 3

Company Profile

2016 ZOOMLION 80 Ton Mobile Crane Hydraulic Crane Lifting Equipment 4

FAQ

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .

2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.

3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.

4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.

5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
