Home / Products / Used Truck Crane /

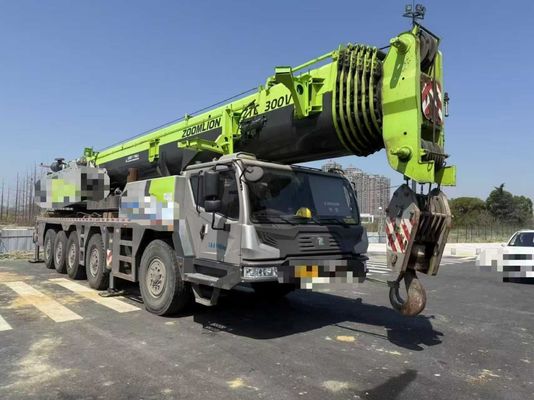

2020 Used Zoomlion 130 ton mobile crane Lifting Equipment Hydraulic Lift Hoist Machinery

Brand Name:	Zoomlion
Model Number:	ZTC300V
MOQ:	1
Price:	USD230000 EXW
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Material:

Original

Condition:

Used

Color:

Original Green

Dimension:

15,900×3,000×3,980

Weight:

54,900

Main Boom:

80M

Carrier Chsssis:

Multi-axle (5-6axles)

Emission:

Euro V

Horspower:

400-500HP

Application:

Erection Of Steel Structures , Precast Concrete ,bridage Building ,Heavy Equipment Handing ,infrastructure Projects, Wind Turbine Installation , Power Plant Maintenance

Packaging Details:

Bulk Cargo Shipping

Highlight:

2020 used truck crane

2020 used truck mobile crane

Product Description

Key Features & Configurations

Parameter	Value
Lifting Capacity
Maximum Rated Total Lifting Capacity (kg)	130,000
Basic Boom Maximum Lifting Moment (kN·m)	5,056
Longest Main Boom Maximum Lifting Moment (kN·m)	2,328
Working Performance
Basic Boom Maximum Lifting Height (m)	15.2
Main Boom Maximum Lifting Height (m)	66.6
Auxiliary Boom Maximum Lifting Height (m)	100
Rope Speed
Main Winch Single-Rope Maximum Speed (m/min)	115
Auxiliary Winch Single-Rope Maximum Speed (m/min)	75
Operating Speed
Boom Raising Time (s)	85
Boom Extension Time (s)	870
Slewing Speed (r/min)	0.1
Altitude & Mobility
Maximum Operating Altitude (m)	2,000
Maximum Travel Speed (km/h)	75
Maximum Gradeability (%)	40
Dimensions
Minimum Turning Radius (m)	24
Minimum Ground Clearance (mm)	325
Overall Dimensions (L×W×H, mm)	15,900×3,000×3,980
Weight Parameters
Gross Weight in Traveling Condition (kg)	54,900
Curb Weight (kg)	54,705
Front Axle Load (kg)	8,500 + 8,500 + 8,500
Rear Axle Load (kg)	10,600 + 10,600 + 8,200
Outrigger & Boom
Longitudinal Outrigger Span (m)	8.35
Lateral Outrigger Span (m)	Full Extension: 7.80 / Half Extension: 5.3
Tail Swing Radius (mm)	4,800
Main Boom Length Range (m)	14–65.9
Main Boom Elevation Angle (°)	-1.5° to 82°
Auxiliary Boom Length Options (m)	11, 18.6, 26.6 (Optional), 34.6 (Optional)
Auxiliary Boom Installation Angle (°)	0°–30°
Emission & Fuel
Exhaust Emission Standard	Compliant with Regulations
Fuel Consumption per 100 km (L)	85

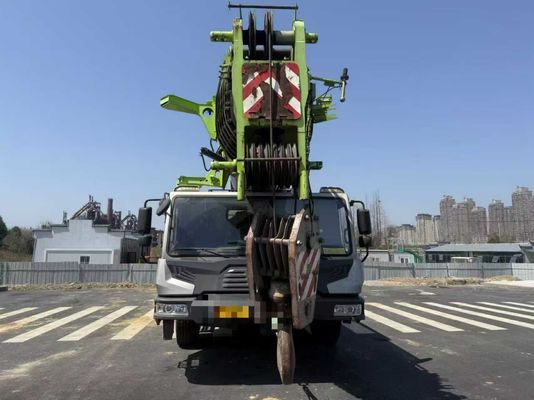

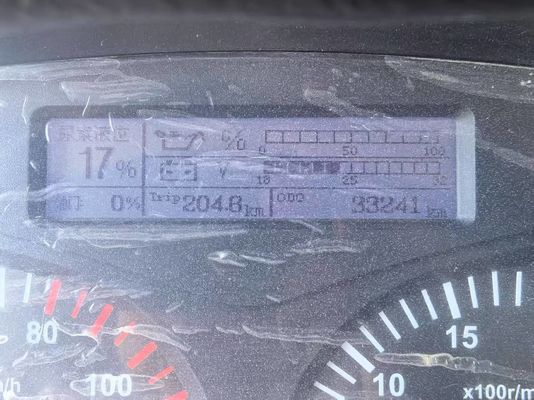

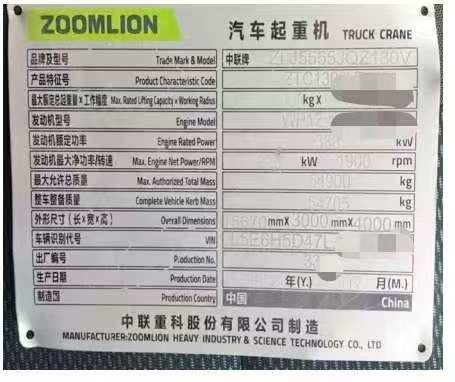

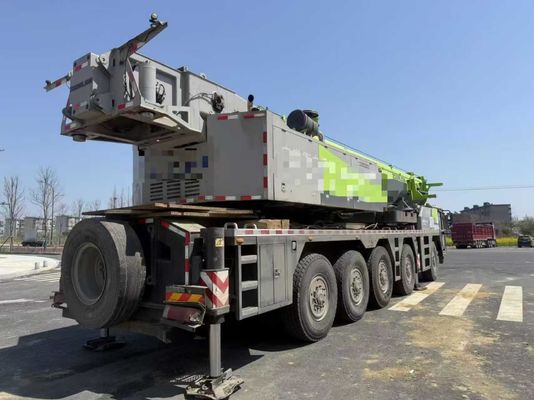

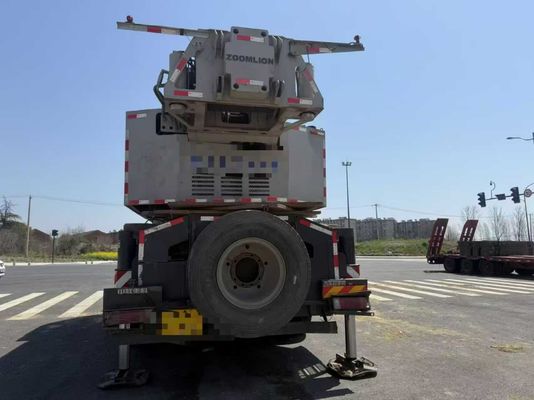

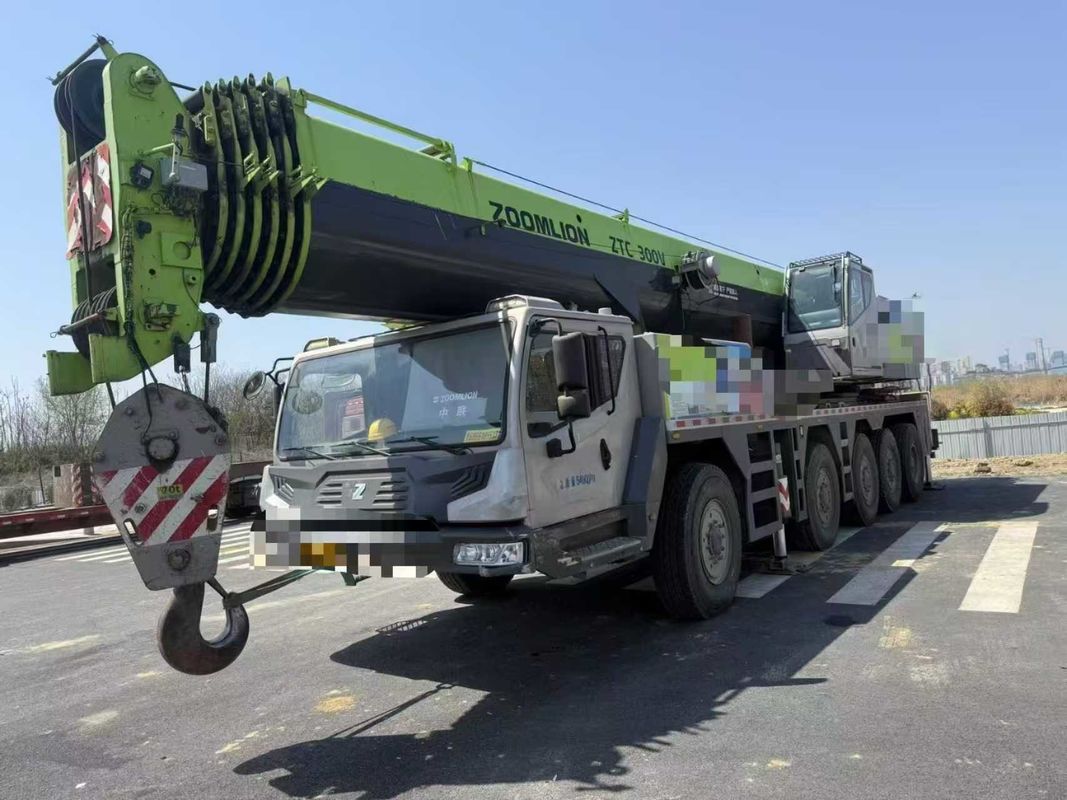

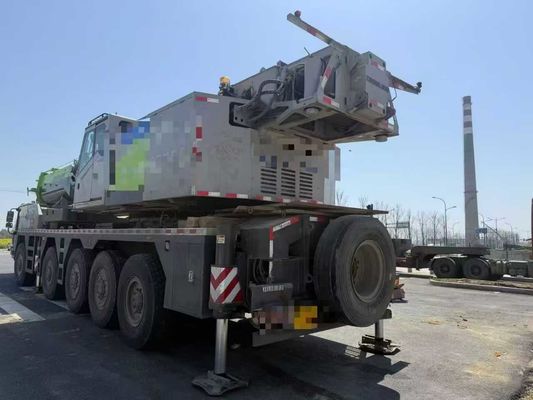

Photo Details

Company Profile

2020 Used Zoomlion 130 ton mobile crane Lifting Equipment Hydraulic Lift Hoist Machinery 0

FAQ

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .

2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.

3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.

4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.

5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
