Used 2021 25-Ton Mobile Truck Cranec5-1 For Sale

Used 2021 25-Ton Mobile Truck Cranec5-1 For Sale

Brand Name: Sany
Model Number: 250C5-1
MOQ: 1
Price: $50000-$70000
Payment Terms: T/T
Supply Ability: 500pieces/Year
Detail Information
Place of Origin:
China
Certification:
CE
Condition:
Used Second Hand
Dimension:
12750*2500*3550mm
Color:
Original Design
Weight:
30000kgs
Main Boom:
42.5m
Counter Weight:
6.2Ton
Milage:
9000klm
Working Hours:
3000H
Application:
Construction , Container Transport , Briage And Road Work, Equipment Installtion,
Packaging Details:
Bulk Cargo Shipping
Supply Ability:
500pieces/Year
Highlight:

2021 used truck crane

,

2021 used truck mobile crane

Product Description

Excellent and stable chassis performance /chassis system
* Double-axle drive is used, providing good trafficability and comfortableness under complex road conditions with reliable traveling performance, and the rear axle is equipped with rubber suspension and V-shaped thrust lever which provide less vibration and a comfortable traveling feeling.
* The engine has the multimode power output function, which reduces power consumption. The use of tipping over early-warning technology provides high stability and safety of the overall operation.

Ultra-long, super strong and highly sensitive load lifting capacity
* Five-section boom of high strength steel structure and optimized U-shaped cross-section reduces weight significantly with higher safety rates. Jib mounting angles are 0°, 15°, and 30° which ensures fast and convenient change-over between different operating conditions so as to improving the working efficiency of the machine.

Highly efficient, stable, energy-saving, and adjustable electrical proportion hydraulic system
* Load feedback of hydraulic system, constant power control, piston pump and the electrical control valve is applied to provide strong lifting capacity and good micro-mobility. A unique steering buffer design is adopted to ensure stable braking operation.

Safe, stable, advanced, and intelligent electric control system
* The adoption of full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in realtime; the load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within 3% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.

Product Parameters
Capacity
Max. lifting capacity
25ton
Dimensions
Overall length
12750mm
Overall width
2500mm
Overall height
3550mm
Axles
3
Axle distance-1,2
4325mm
Axle distance-2,3
1350mm
Weight
Overall weight
30000kg
Front axle load
6500kg
Rear axle load
23500kg

Rated power
213kw/2100r/min
Rated torque
1050N·m/1200~1400r/min
Emission standard
Euro 3
Traveling
Max. traveling speed
80km/h
Min.turning radius
10m
Min.turning radius of boom head
12 m
Drive train
6×4
Min. ground clearance
220mm
Approach angle
17 °
Departure angle
12 °
Max. gradeability
38%
Fuel consumption per 100km
≤ 37L

Min.lifting radius
3m
Tail swing radius of superstructure
3.37m
Boom section
4
Boom shape
U-shaped
Max. lifting moment-Base boom
962kN·m
Max. lifting moment-Full-extend boom
544kN·m
Max. lifting moment-Full-extend boom+jib
341kN·m
Length-Base boom
10.65m
Length-Full-extend boom
33.5m
Length-Full-extend boom+jib
41.5m
Outrigger span(Longitudinal/Transversal)
5.3m × 6.2m
Jib offset
0 ° 15 ° 30 °
Working Speed
Max. single rope lifting speed of main winch(no load)
120m/min
Max. single rope lifting speed of auxiliary winch(no load)
120m/min
Full extend/retract time of boom
70 / 50s
Full raise/lower time of boom
70 / 55s
Swing speed
0~2 r/min
Aircondition
HVAC in up cab
Cooling and Heating
HVAC in low cab
Cooling and Heating

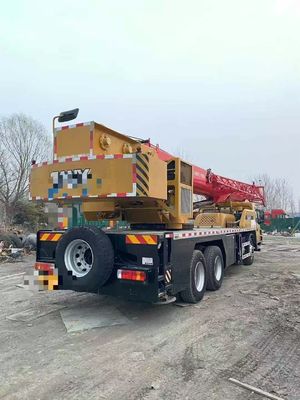

Used 2021 25-Ton Mobile Truck Cranec5-1 For Sale 0

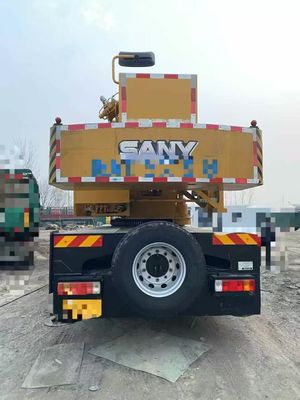

Used 2021 25-Ton Mobile Truck Cranec5-1 For Sale 1

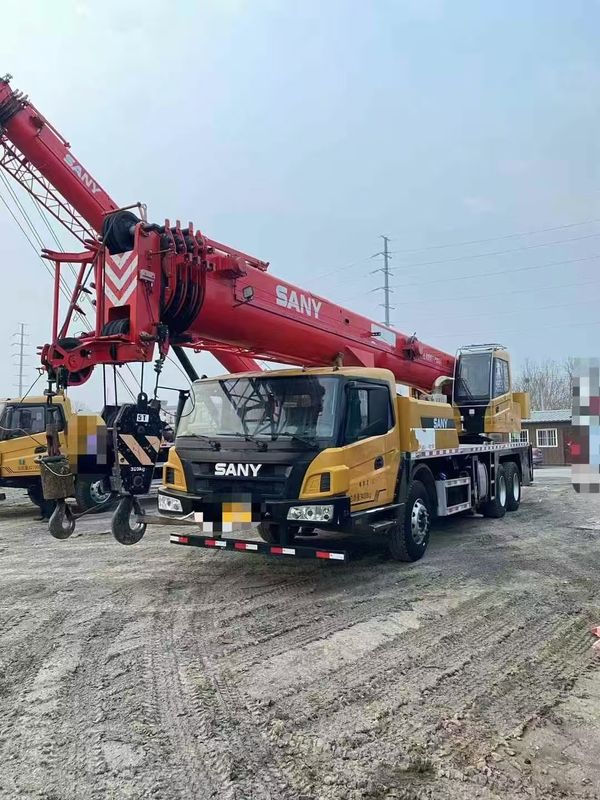

Used 2021 25-Ton Mobile Truck Cranec5-1 For Sale 2

FAQ

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .

2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.

3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.

4:How do I know the condition of the original used or re-manufacturing  concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.


5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
