Used ZOOMLION 63m Concrete Pump With Mercedes Benz Chassis Second Hand

Used ZOOMLION 63m Concrete Pump With Mercedes Benz Chassis Second Hand

Brand Name: ZOOMLION
MOQ: 1
Price: USD70000-USD150000 EXW
Payment Terms: L/C,T/T
Detail Information
Place of Origin:
China
Rated Working Pressure:
42MPa
Pumping Frequency:
26min-1
Structure Form:
63X-7RZ
Concrete Cylinder Diameter X Stroke:
Φ260x2100mm
Packaging Details:
Bulk Cargo Shipping
Highlight:

benz chassis old concrete pump truck

,

benz chassis used concrete pump truck

Product Description

Key Features & Configurations

Specification

Details

Maximum Theoretical Delivery Volume

180m³/h

Maximum Concrete Outlet Pressure

11.3MPa

Rated Working Pressure

42MPa

Pumping Frequency

26min-1

Concrete Cylinder Diameter x Stroke

Φ260x2100mm

Structure Form

63X-7RZ

Maximum Placement (Height)

62.1m

Maximum Placement (Radius)

56.9m

Maximum Placement (Depth)

46.4m

Slewing Angle

±270°

Outrigger Span (Front)

12250mm

Outrigger Span (Rear)

12820mm

Outrigger Span (Longitudinal)

11660mm

Chassis and Vehicle Emissions

China V /Euro ⅤEmissions Standards
with Benz Chassis



  1. Benz Chassis for Superior Performance:

    • Equipped with a robust Benz Actros series chassis, the pump truck ensures smooth operation, enhanced stability, and exceptional maneuverability on various terrains.
  2. Efficient Pumping Technology:

    • Adopting industry-leading high-precision and high-efficiency pumping technology, it delivers faster pumping speeds and up to 5-8% higher efficiency compared to similar products.
  3.  Enhanced Stability and Safety:

    • The pump truck is equipped with front 3-stage telescopic X-shaped outriggers, which increase overall stability by distributing pressure and reducing ground pressure.
  4. Vibration Reduction and Energy Efficiency:

    • Equipped with full-posture active vibration reduction technology, the boom vibrates by less than 0.4 meters under all working conditions, ensuring stable operation. Additionally, the pump truck boasts a 2%-4% lower energy consumption compared to industry averages.
  5. Smart Monitoring System:

    • Featuring 31 sensors across the vehicle, the ZLJ5440THBBE constantly monitors various indicators and parameters, ensuring optimal performance and safety during operation.

Idea for

  1. High-rise Building Construction

  2. Infrastructure Development: bridges, tunnels, and highways, where large volumes of concrete need to be placed accurately and efficiently.

  3. Large-scale Commercial and Residential Projects:

  4. Energy and Utilities: power plants and water treatment facilities, where precision and efficiency in concrete placement are crucial.

Photo Details

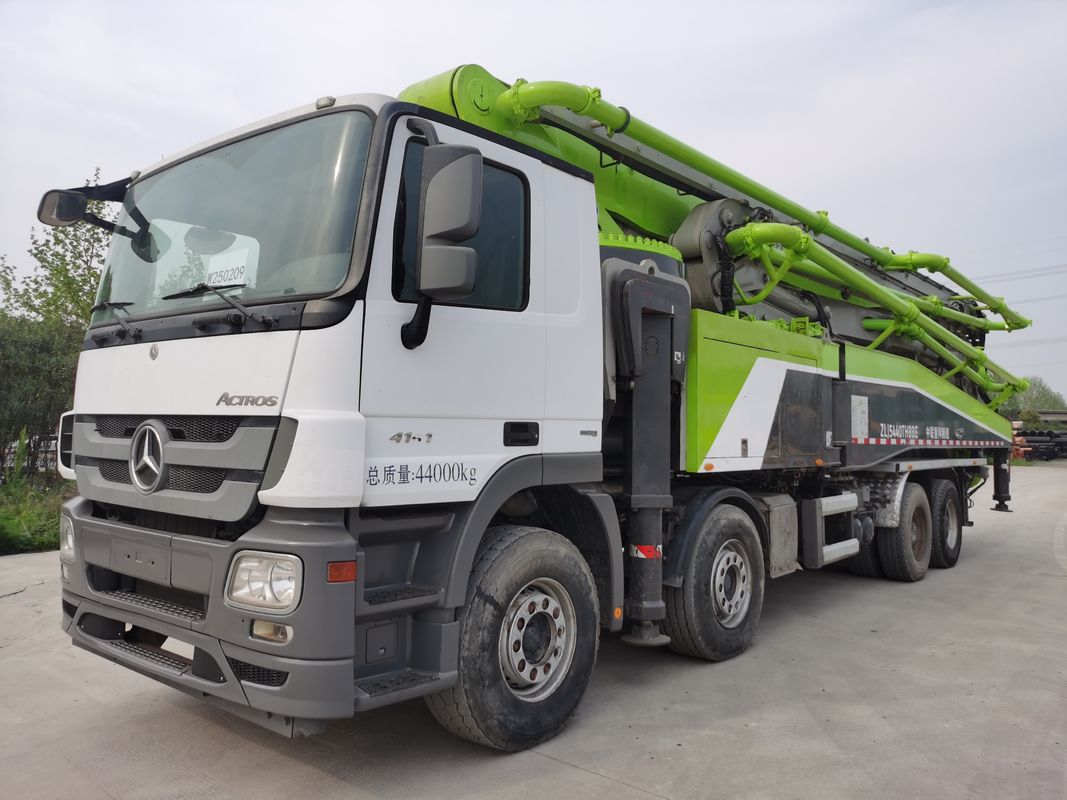

Used ZOOMLION 63m Concrete Pump With Mercedes Benz Chassis Second Hand 0

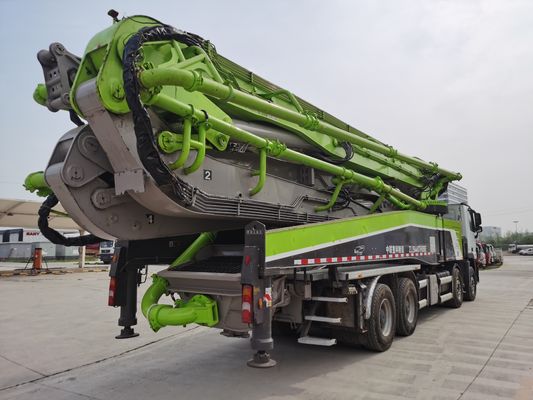

Used ZOOMLION 63m Concrete Pump With Mercedes Benz Chassis Second Hand 1

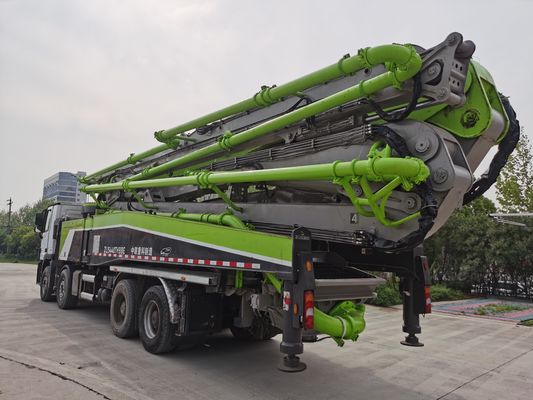

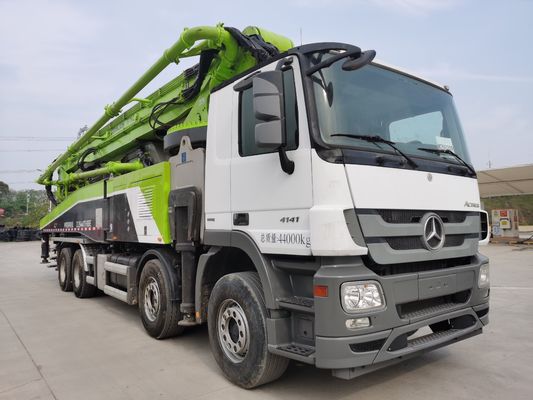

Used ZOOMLION 63m Concrete Pump With Mercedes Benz Chassis Second Hand 2Used ZOOMLION 63m Concrete Pump With Mercedes Benz Chassis Second Hand 3

Company Profile

Used ZOOMLION 63m Concrete Pump With Mercedes Benz Chassis Second Hand 4

FAQ

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .

2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.

3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.

4:How do I know the condition of the original used or re-manufacturing  concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.


5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
